[Usage] : Widely used in metallurgical powder, ceramic sintering, silicon carbide sintering, boron nitride sintering
Product Advantage

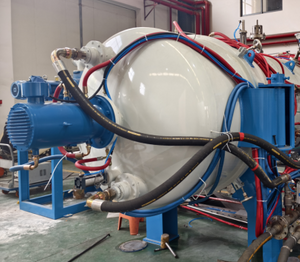

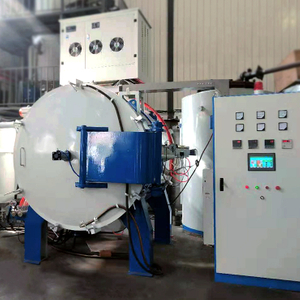

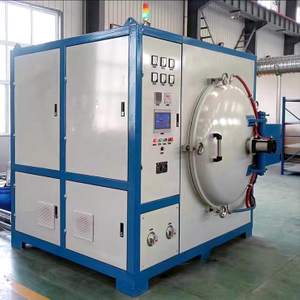

Silicon carbide sintering furnace is a kind of intermittent resistance heating furnace, the main application scope is non-pressure silicon carbide sintering, hard alloy, powder metallurgy industry production of various particle sizes of tungsten carbide powder, chromium carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder, cold pressing molding, sintering treatment. There are 200 different process heating curves in section.
Characteristics of silicon carbide sintering furnace:
Intelligent digital display instrument programming PID intelligent digital display temperature controller, new digital display, intelligent control technology, can reduce visual reading and human operation error, greatly improve work efficiency, double row digital display, key setting, overtemperature alarm. Microcomputer automatic control, programmable multi-section rising, protecting, cooling curve, automatic heating, heat preservation, cooling and overtemperature protection, the program automatically stops at the end of operation, no need to watch.
Fast heating, environmental protection and energy saving, high precision, stable performance, good heat preservation effect.
Furnace adopts high temperature heat insulation material, durable, the selection of heat insulation material to ensure that the temperature outside the furnace body under long-term work does not exceed the allowable value of the national standard.
Internal circulating water system, to ensure the speed of cooling. The furnace body temperature is close to room temperature.
Product Specification
| Model | JT-TSL-45 | JT-TSL-128 | JT-TSL-375 | JT-TSL-720 | JT-TSL-1568 | JT-TSL-2560 | JT-TSL-5000 |
| Common Constant Temperature Zone(mm) | 300*300*500 | 400*400*800 | 500*500*1500 | 600*600*2000 | 700*700*3000 | 800*800*4000 | 1000*1000*5000 |
| Loading Capacity | 45L | 128L | 375L | 720L | 1568L | 2560L | 5000L |
| Ultimate Temperature | ≤2450℃ | ||||||
| Operating Temperature | ≤2300℃ | ||||||
| Ultimate Vacuum Degree | 1Pa（In a cold, empty, clean furnace chamber） | ||||||
| Leakage Rate | After stopping the pump for 15 minutes, the cold state for 12 hours is not more than 10Pa/ hour | ||||||
| Temperature Control Accuracy | ±1℃ | ||||||
| Voltage | 380V、50Hz、 Three Phrase | ||||||
| Heating Material | Graphite tubes and graphite rods | ||||||
| Gas Supply | Argon gas and nitrogen gas can be controlled separately on the valve disc | ||||||
Introducing our top-of-the-line Silicon Carbide Sintering Furnace, designed to meet the needs of professionals in the metallurgical powder, ceramic sintering, silicon carbide sintering, and boron nitride sintering industries. This furnace is equipped with advanced technology and features that ensure precise and reliable performance, making it a must-have for any laboratory or production facility.
Our Silicon Carbide Sintering Furnace boasts a robust construction, built to withstand extreme temperatures and heavy usage. It is engineered with the latest safety features to ensure user protection and minimize the risk of accidents. The furnace is easy to use, with a user-friendly interface that allows for simple and intuitive operation.
This furnace is widely used in various industries due to its versatility and efficiency. It can accommodate a wide range of materials, making it the perfect choice for professionals who require a furnace that can handle different types of sintering processes. The Silicon Carbide Sintering Furnace is designed to deliver consistent and uniform results, ensuring that your products meet the highest quality standards.
In conclusion, our Silicon Carbide Sintering Furnace is the ultimate solution for professionals in the metallurgical powder, ceramic sintering, silicon carbide sintering, and boron nitride sintering industries. It is a reliable, efficient, and versatile furnace that will help you achieve consistent and high-quality results. Invest in our Silicon Carbide Sintering Furnace today and take your production to the next level!
Operation mode of silicon carbide sintering furnace
1. Preparation: the silicon carbide powder and additives are mixed evenly according to a certain proportion, and then the mixture is loaded into the mold.
2. Heating: Put the mold containing the mixture into the sintering furnace, close the furnace door, and set the required temperature and holding time.
3. Heating up: the temperature in the furnace gradually rises until the set sintering temperature is reached. The heating rate is generally slow, so as not to cause the temperature gradient to be too large, resulting in cracking or deformation of the sintered product.
4. Heat preservation: After reaching the sintering temperature, maintain a certain time to combine the particles in the mixture with each other to form a dense sintered body.
5. Cooling: After sintering is completed, open the furnace door, let the temperature in the furnace gradually reduce, and then take out the sintered product.
It should be noted that the operation of silicon carbide sintering furnace should pay attention to safety, to avoid the temperature in the furnace is too high or too low, so as not to cause accidents or affect the sintering effect. At the same time, it is also necessary to operate according to the specific sintering process requirements to ensure the quality of the sintered product.
