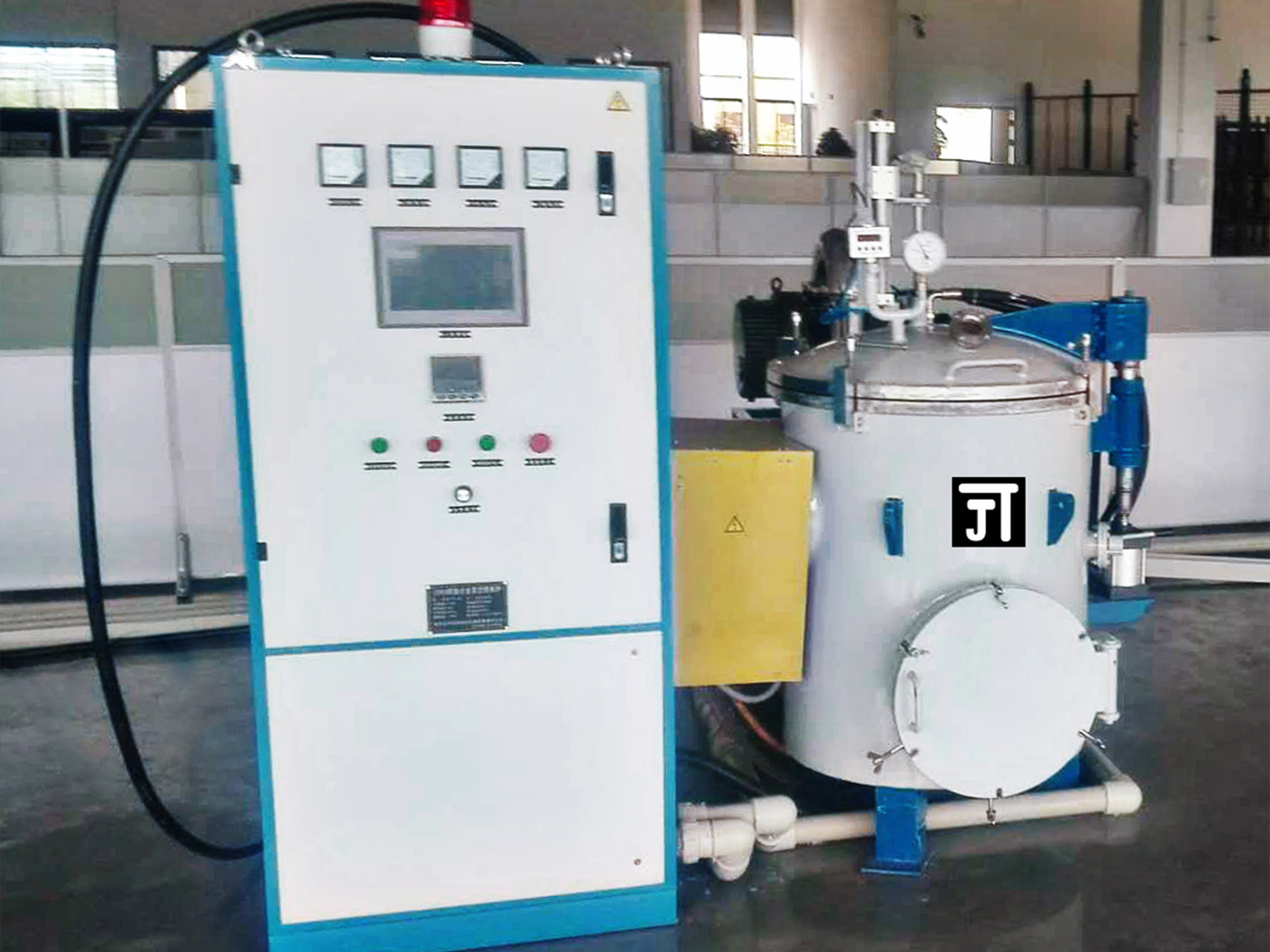

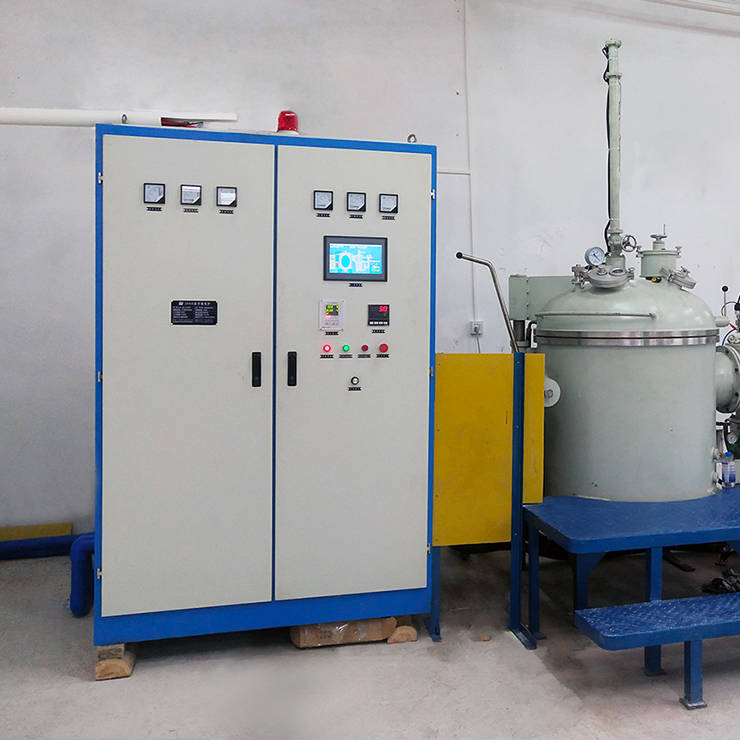

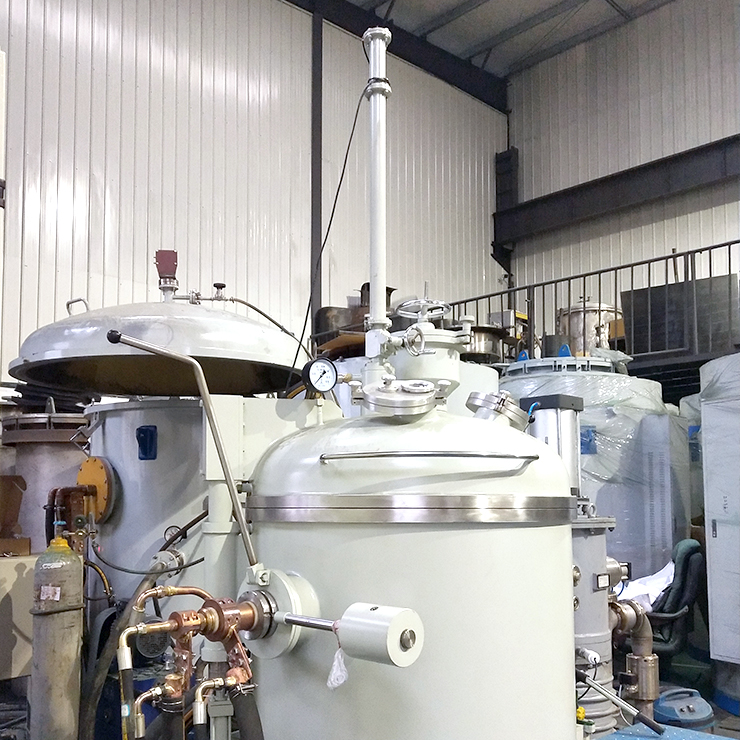

Vacuum induction melting furnace
[Usage] : Vacuum induction melting furnace is a complete set of vacuum smelting equipment that melts metal under vacuum condition by using the principle of medium frequency induction heating. Suitable for scientific research and production departments of nickel base and its special steel, precision alloy, high temperature alloy, rare earth metal, active metal, copper and copper alloy, hydrogen storage materials, Ndfeb, magnetic materials in vacuum or protective atmosphere for smelting and casting.
Product advantage
This product adopts 500-4000Hz medium frequency power for induction heating, power range is 100-6000KW, mainly used for smelting magnetic materials and special materials, such as Ndfeb, alloy steel, special steel, stainless steel, also can be used for copper, aluminum, lead, zinc and other non-ferrous metal smelting and heating, heat preservation.
Features:
(1) The equipment is small in size, light in weight, high in efficiency and low in power consumption.
(2) Low temperature around the furnace, less smoke, good operating environment.
(3) The operation process is simple and the melting operation is reliable.
(4) The metal composition is uniform and the material is easy to control.
(5) Fast melting temperature rise, easy to control furnace temperature, good production efficiency.
(6) High utilization rate of furnace, easy to replace varieties.
Product Specification
Model | GJC-ZGL-5 | GJC-ZGL-10 | GJC-ZGL-30 | GJC-ZGL-50 | GJC-ZGL-100 | GJC-ZGL-250 | GJC-ZGL-500 |
Volume(KG) | 5 | 10 | 30 | 50 | 100 | 250 | 500 |
Highest Operating Temperature(℃) | 1700 | ||||||
Ultimate Vacuum Degree（Pa） | 6.67*10-3 | ||||||
Working Vacuum Degree（Pa） | 6.67*10-2 | ||||||
Pressure Rise Rate（Pa/h） | ≤6.5 | ||||||
Pressure Rise Rate（Kw） | 50-400 | ||||||
Rated intermediate frequency frequency（Hz） | 500-4000 | ||||||
Intermediate Frequency Voltage（V） | 750/375 | ||||||
Cooling Water Consuption（m3/h） | 0.3-40 | ||||||
Cooling Water Pressure（MPa） | 0.3 | ||||||
