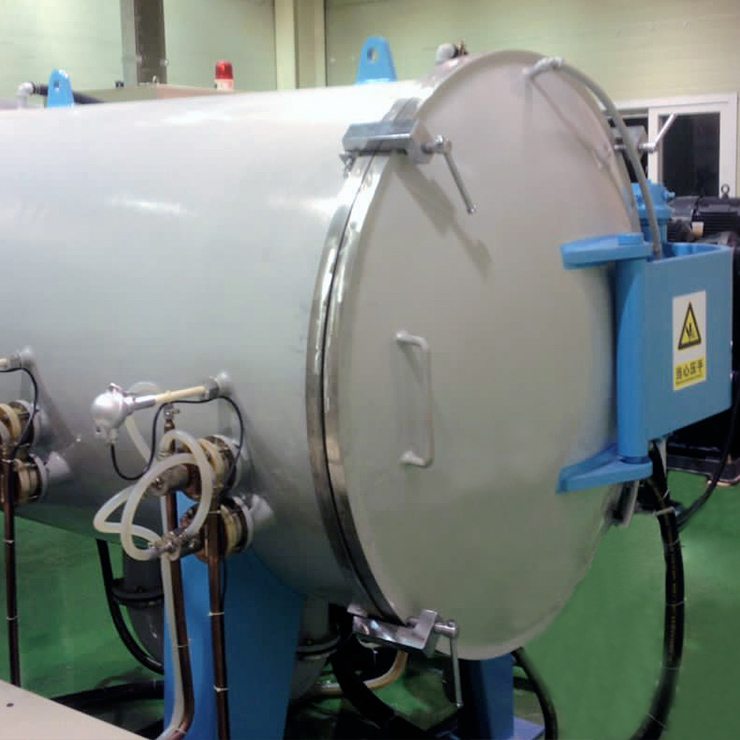

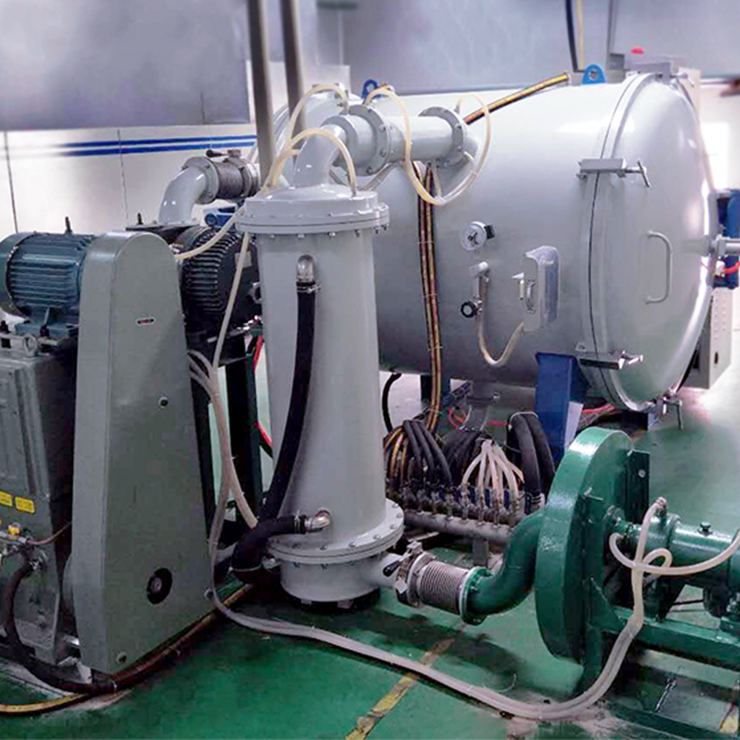

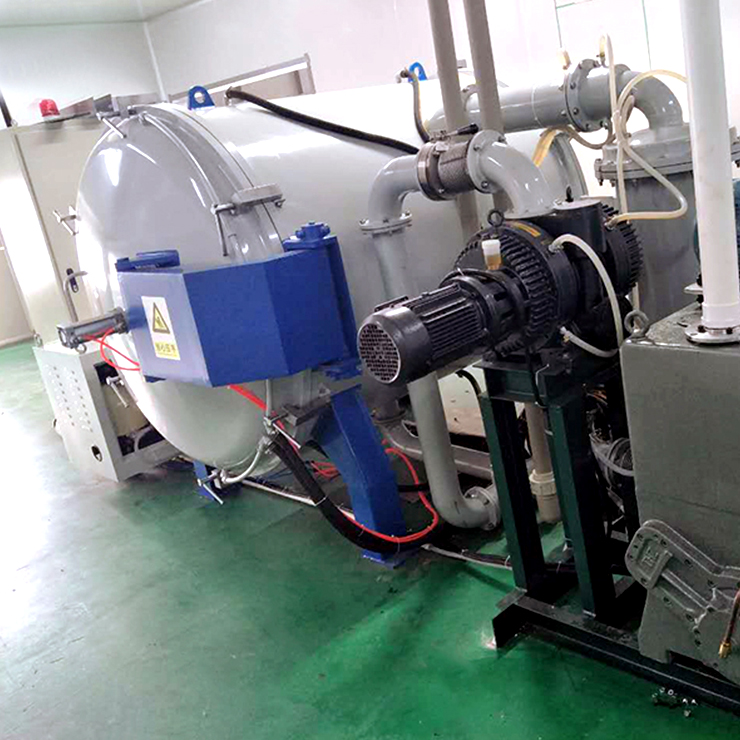

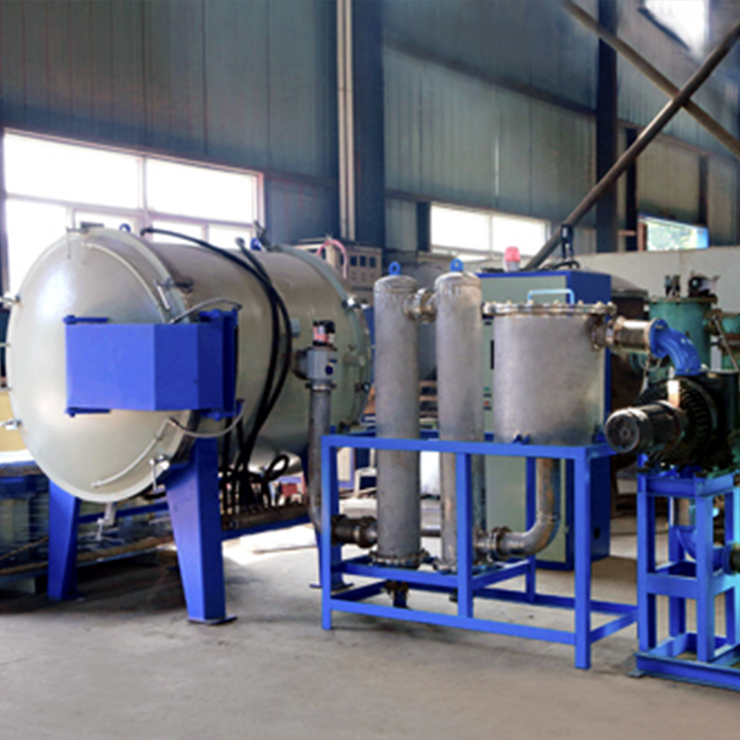

Medium frequency carbonization furnace
[Usage] : Medium frequency carbonization furnace is an intermittent induction heating furnace, mainly used for carbide, powder metallurgy industry production of tungsten carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder.
Feature
1800℃ ultra-high temperature furnace body can meet the carbonization heating process of fine, medium and coarse granular WC powder and composite material.
Using digital display programmable intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.
Adopt pure water cooling system, digital flow monitoring system.
Performance medium frequency contactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.
Compared with traditional carbonization furnace, the system has the advantages of complete reaction, uniform particle size, high combined carbon content, low free carbon content, and high output, good working conditions, long service life.
Product Specification
Model | GJC-THL-35-Z | GJC-THL-100-Z | GJC-THL-200-Z | GJC-THL-340-Z | GJC-THL-570-Z |
Common Constant Temperature Zone(mm) | 300*300*500 | 400*400*800 | 500*500*1000 | 600*600*1200 | 700*700*1500 |
Loading Capacity | 35L | 100L | 200L | 340L | 570L |
Temperature Uniformity | ≤±10℃ | ||||
Highest Operation Temperature | 1200℃-1600℃ | ||||
Working Atmospere in the Furnace | Vacuum, hydrogen, nitrogen, inert gas, etc | ||||
Temperature Measurement | Infrared optical measurement | ||||
Temperature Measurement Range | 800-2000℃ or Normal Temperature-2400℃ thermocouple measurement | ||||
Temperature Control | Program control and manual control | ||||
Temperature Measurement Accuracy | 0.2-0.75% | ||||
Temperature Control Accuracy | ±1℃ | ||||
Ultimate Heating Rate | 30℃/ min (empty furnace, depending on the volume of high temperature zone and furnace structure) | ||||
Heating Mode | Medium Frequency | ||||
