IGBT short circuit heating equipment
【 Usage 】:
(1) Mainly used for melting ordinary carbon steel, alloy steel, cast steel, cast iron, non-ferrous copper, aluminum, alloy and so on.
(2) It has the advantages of good efficiency, fast productivity and convenient operation.
(3) The new power supply is a voltage-type inverter with series resonant output.
(4) The inverter part adopts advanced IGBT transistor.
(5) The performance of this new power supply is better than the SCR if power supply in many aspects.
Product Advantage

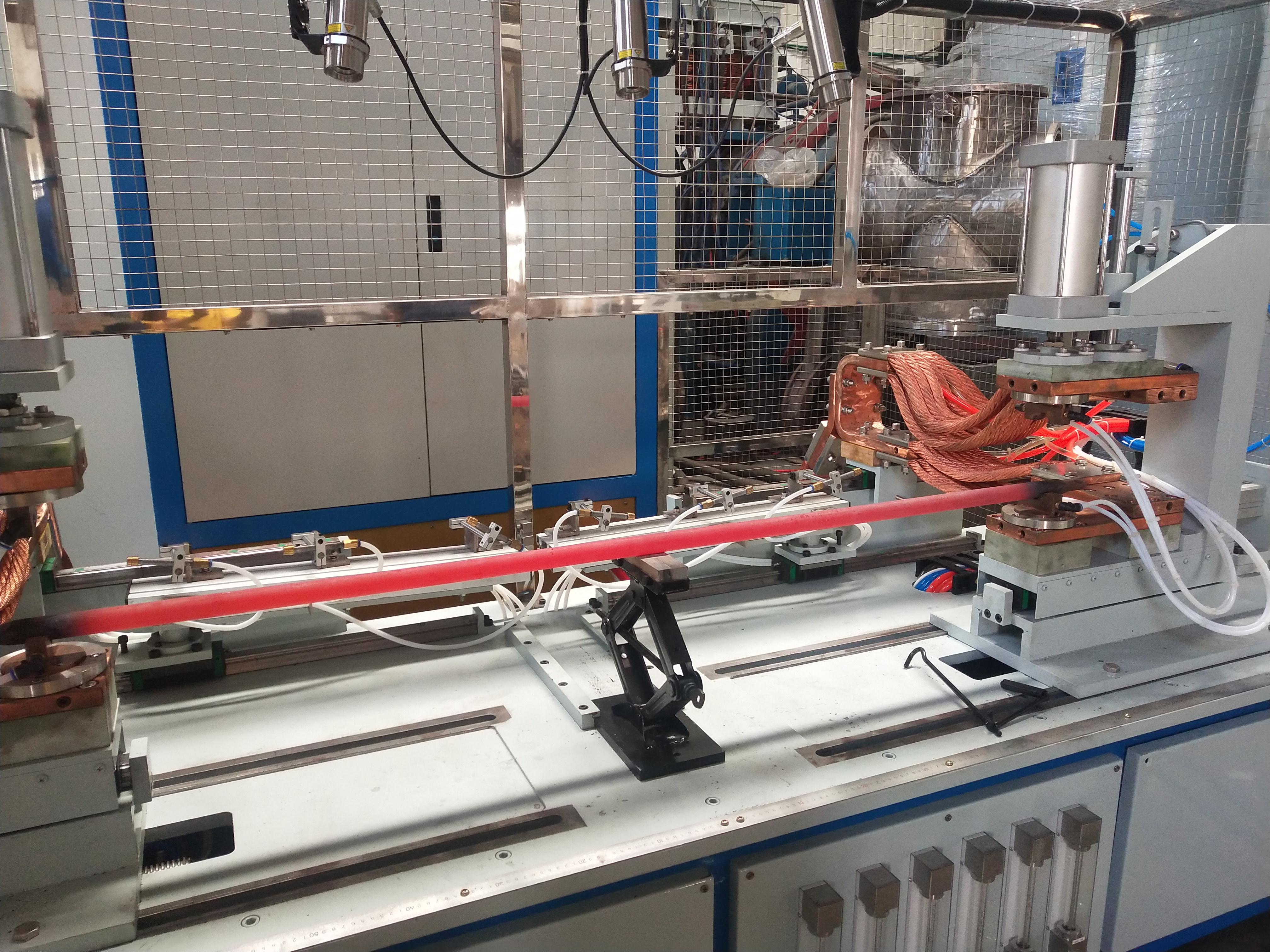

IGBT short circuit heating equipment is mainly used in automotive stabilizer bar, automotive torque bar and other rod metal induction heating, the whole set of short circuit heating equipment processing range, productivity, quality consistency, power consumption, power factor, induction heating equipment utilization rate have reached the standard level.
Product features:
1, mechanical automation, time-saving, labor-saving, small size, large power, fast heating, core penetration, electricity saving.
2, compared with the old SCR if, SCR if heating power per ton of about 470 degrees. Medium frequency power consumption of 350 degrees. It saves more than 100 kilowatts of electricity per ton burned.
3, the main device adopts IGBT module, the circuit adopts full bridge rectifier, capacitor filter, bridge inverter, series resonance output. And the old if using SCR parallel resonance is fundamentally different.
4, not controllable rectifier, rectifier circuit is fully on. High power factor, voltage-type series resonance, etc., determines that the equipment saves electricity greatly.
5, the full bridge rectifier does not control the rectification, eliminating the huge reactor, reduce the interference to the power grid, improve the power factor.
6, energy-saving IGBT transistor if power supply than the traditional SCR if power supply can save 15%-25 energy.

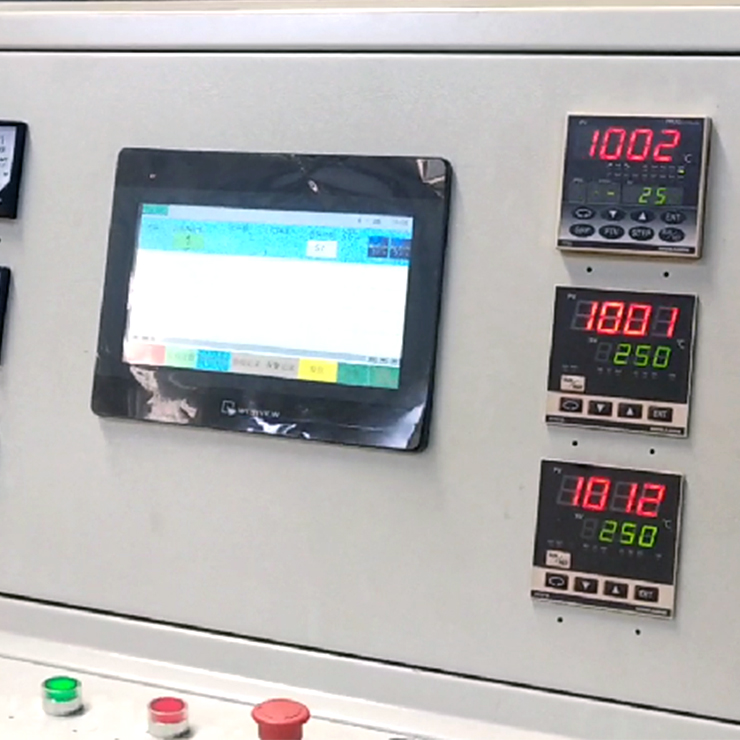

7, easy to use and maintenance. IGBT intermediate frequency power supply circuit structure is simple, complete protection, with complete fault display function, can quickly find the fault point, convenient maintenance.
Product Specification
Model | Rated capacity(T) | Into the line voltage(V) | Transformer capacity(KVA) | Outout Power(KW) | Output Voltage(V) | Output Frequency(Hz) | Input Current(A) | Productivity(T/H) | Cooling Water Flow(T） | Power consumption indicators |
IFBT-150-3/GW-0.1 | 0.1 | 380 | 160 | 150 | 3000 | 3000 | 240 | 0.35 | 10 | IGBT with the same specifications than KGPS if medium frequency furnace less electricity 20% cornerstone. The power factor can reach 0.95. |
IGBT-200-3/GW-0.15 | 0.15 | 380 | 200 | 200 | 3000 | 3000 | 320 | 0.43 | 10 | |
IGBT-250-3/GW-0.35 | 0.35 | 380 | 250 | 250 | 3000 | 2000 | 400 | 0.53 | 10 | |
IGBT-400-1/GW-0.5 | 0.5 | 380 | 400 | 400 | 3000 | 1000 | 640 | 0.6 | 10 | |
IGBT-500-1/GW-0.75 | 0.75 | 380 | 500 | 500 | 3000 | 1000 | 800 | 0.9 | 10 | |
IGBT-700-0.75/GW-1 | 1 | 380/750 | 800 | 700 | 3000 | 750 | 1120 | 1.05 | 30 | |
IGBT-1000-0.5/GW-1.75 | 1.5 | 750 | 1000 | 1000 | 3000 | 500 | 1400 | 1.5 | 30 | |
IGBT-1200-0.5/GW-1.75 | 1.75 | 750 | 1250 | 1200 | 3000 | 500 | 1460 | 1.85 | 30 | |
IGBT-1500-0.5/GW-2 | 2 | 750 | 1500 | 1500 | 3000 | 500 | 1600 | 2.1 | 30 | |
IGBT-2000-0.2/GW-3 | 3 | 750 | 2000 | 2000 | 3000 | 200 | 2000 | 3.2 | 30 |
